Duotight Draft Regulator Board | Gas Manifold | 4 Way | With Valves | 8 mm (5/16 in.)
Duotight Draft Regulator Board | Gas Manifold | 4 Way | With Valves | 8 mm (5/16 in.)
Regular price
$99.99 USD
Regular price
Sale price
$99.99 USD
Unit price
per

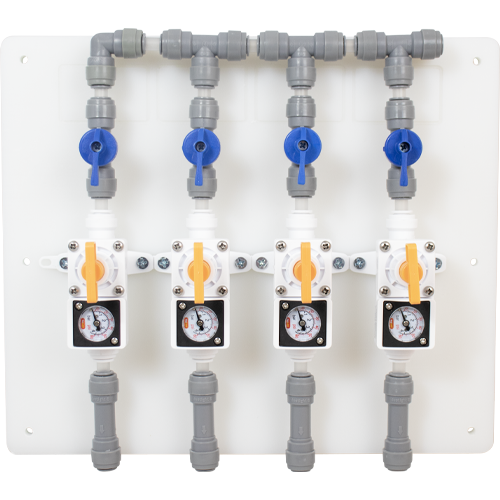

The Duotight Draft Regulator Board is a simple and cost-effective solution to serving beer and other beverages on draft at different pressures. With a standard CO2 tank and CO2 regulator, you can feed gas at a single pressure into the regulator board and then fine tune individual pressure settings for each gas line via the Duotight In-Line Regulators. These regulators feature built-in pressure gauges that make adjustments super simple and check valves are included as standard so you never have to worry about back flow into the regulator. This kit includes everything you need to assemble your regulator board and can be customized so the gas inlet is on the right or left side—whichever makes the most sense for your home draft setup. Duotight push-to-connect fittings and the precut rigid joiners make assembly a breeze and only takes 10-15 minutes!
The draft board kit comes in two options—with or without shut off valves. These valves offer peace of mind and allow you to shut off gas flow to any line that is not in use. If you ensure that your system has no leaks, they aren't technically needed, and you can always fully tighten your Duotight Regulator adjustment knob for added protection. But that little extra security might help you sleep easier at night! One advantage of choosing no check valves, however, is that it will leave room at the top of the board to label your gas lines.
One of the coolest features of the Duotight In-Line Regulator is that the included pressure gauge can be swapped out for different pressure ranges. The standard gauge reads 0-60 PSI, but if you have one line that will always be used for serving Ales, you can swap to a 0-15 PSI gauge that will be a little easier to read and make precise adjustments. There's also a Digital Pressure Gauge available that provides backlit instant reads and is rated from 0-90 PSI.
Need more than 4 gas lines? Check out the 6-Way Duotight Draft Regulator Board.
Kit Includes:
4-Output Gas Board
(4) Duotight In-Line Regulators
(4) Duotight Check Valves
(4) Duotight Shut Off Valves (if selected above)
(3) Duotight Tees
(1) Duotight Elbow
(15) Rigid Plastic Joiners
NOTE: All Duotight fittings and rigid plastic joiners come as 8mm OD. Mounting hardware is included for the regulators but not for mounting the board itself to a wall or the inside of your kegerator/keezer. If you select the option without shutoff valves, you will be left with some spare joiners after assembly.
The draft board kit comes in two options—with or without shut off valves. These valves offer peace of mind and allow you to shut off gas flow to any line that is not in use. If you ensure that your system has no leaks, they aren't technically needed, and you can always fully tighten your Duotight Regulator adjustment knob for added protection. But that little extra security might help you sleep easier at night! One advantage of choosing no check valves, however, is that it will leave room at the top of the board to label your gas lines.
One of the coolest features of the Duotight In-Line Regulator is that the included pressure gauge can be swapped out for different pressure ranges. The standard gauge reads 0-60 PSI, but if you have one line that will always be used for serving Ales, you can swap to a 0-15 PSI gauge that will be a little easier to read and make precise adjustments. There's also a Digital Pressure Gauge available that provides backlit instant reads and is rated from 0-90 PSI.
Need more than 4 gas lines? Check out the 6-Way Duotight Draft Regulator Board.
Kit Includes:
4-Output Gas Board
(4) Duotight In-Line Regulators
(4) Duotight Check Valves
(4) Duotight Shut Off Valves (if selected above)
(3) Duotight Tees
(1) Duotight Elbow
(15) Rigid Plastic Joiners
NOTE: All Duotight fittings and rigid plastic joiners come as 8mm OD. Mounting hardware is included for the regulators but not for mounting the board itself to a wall or the inside of your kegerator/keezer. If you select the option without shutoff valves, you will be left with some spare joiners after assembly.
